Course Notes

Following is the Presentation titled “Improved Practises for the Construction of Houses in the Caribbean”.

Improved Practises for the Construction of Houses R3

Design tables for foundations, slabs, beams and columns (extracted from the course notes) are provided below for convenience.

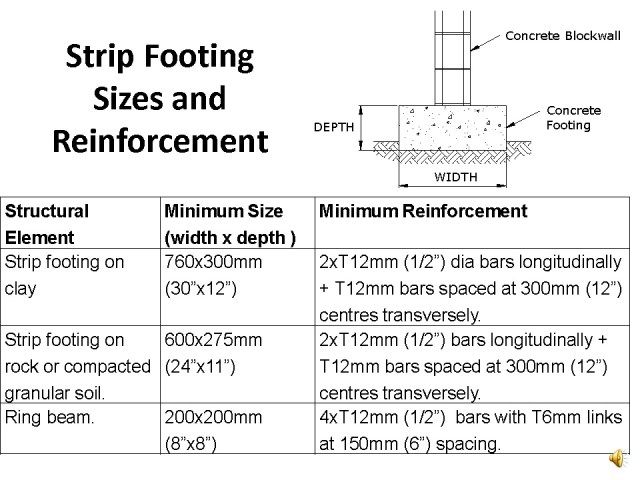

Table Strip footing_Page_01

Table - padfootng_Page_02

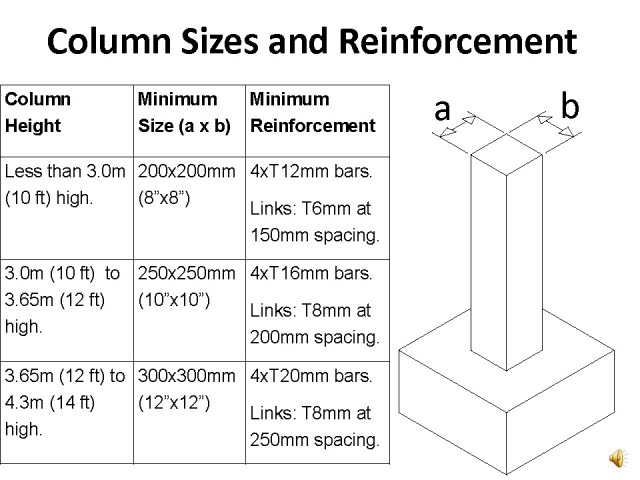

Table - column_Page_03



Table - beams_Page_07

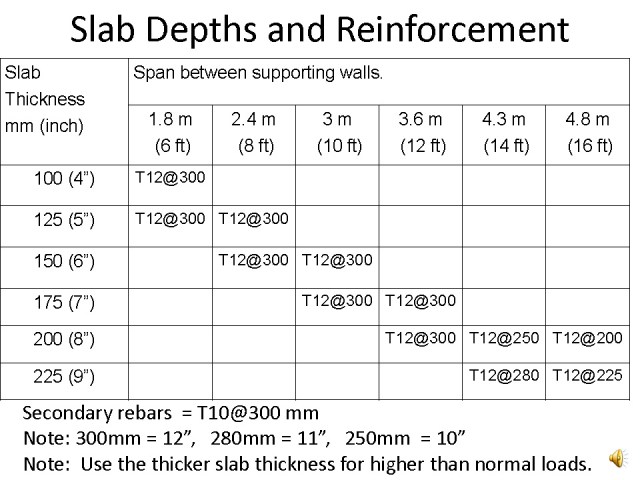

Table - slabSizeandrebars_Page_04

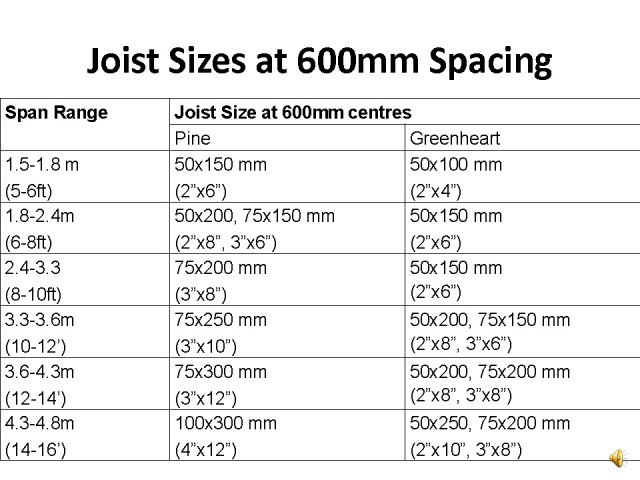

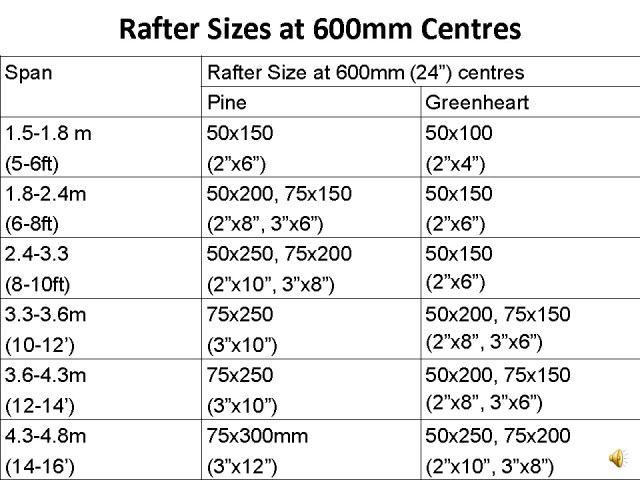

Table - rafter600_Page_10Table - joists600_Page_05
